Polyester

Polyester Paint Arrestors

Polyester Paint Arrestors are a unique group of filters in the FG-Finishing’s family of products. Over the last 30 years, we have developed a wide selection of weights, thicknesses, and sizes available to industry. FG-Finishing can provide standard and custom sizes as special care is taken in proper product selection to insure providing a tailored filtering system with respect for all variables present in your finishing environment.

Polyester PRODUCTS AVAILABLE IN PADS, BLANKETS AND ROLLS
Supraloft Brand PRODUCTS AVAILABLE IN ROLLS ONLY

e75

Series E75

FG-F’s Series 1″ E75 polyester media utilizes the latest in recycled fiber technology to yield a highly efficient and long-lasting economical filter options for mid-high volume finishing operations. E75 has high particle removal efficiency (99%+), excellent holding capacity and longevity. Low initial pressure drop (0.06″ w.c.)


E12

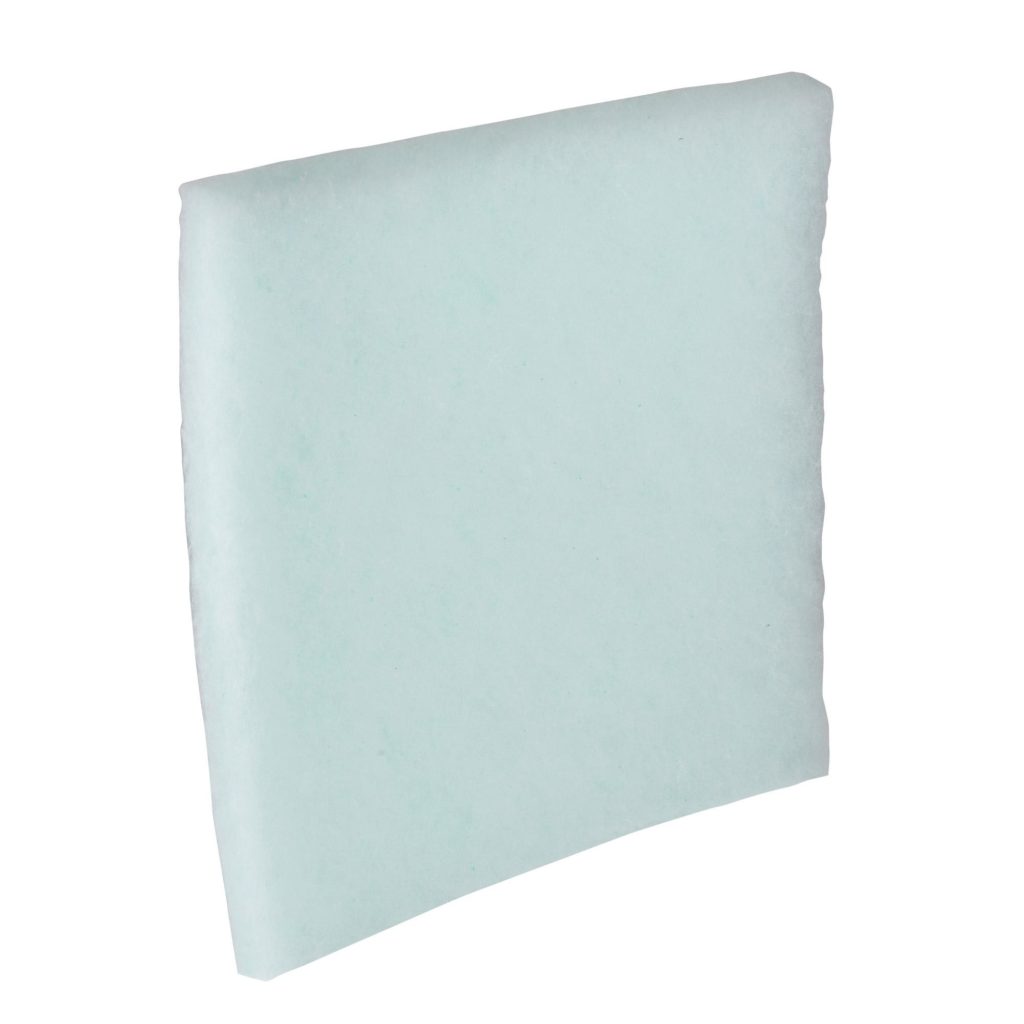

Series E12

The 2″ Series E12 is a heavier, denser version of the popular recycled E75 overspray collector. With almost 40% more weight and holding capacity, the E12 is designed for high volume applications requiring high efficiency and maximum longevity. High particle removal efficiency (99%+). Ultimate holding capacity and longevity.



E12H

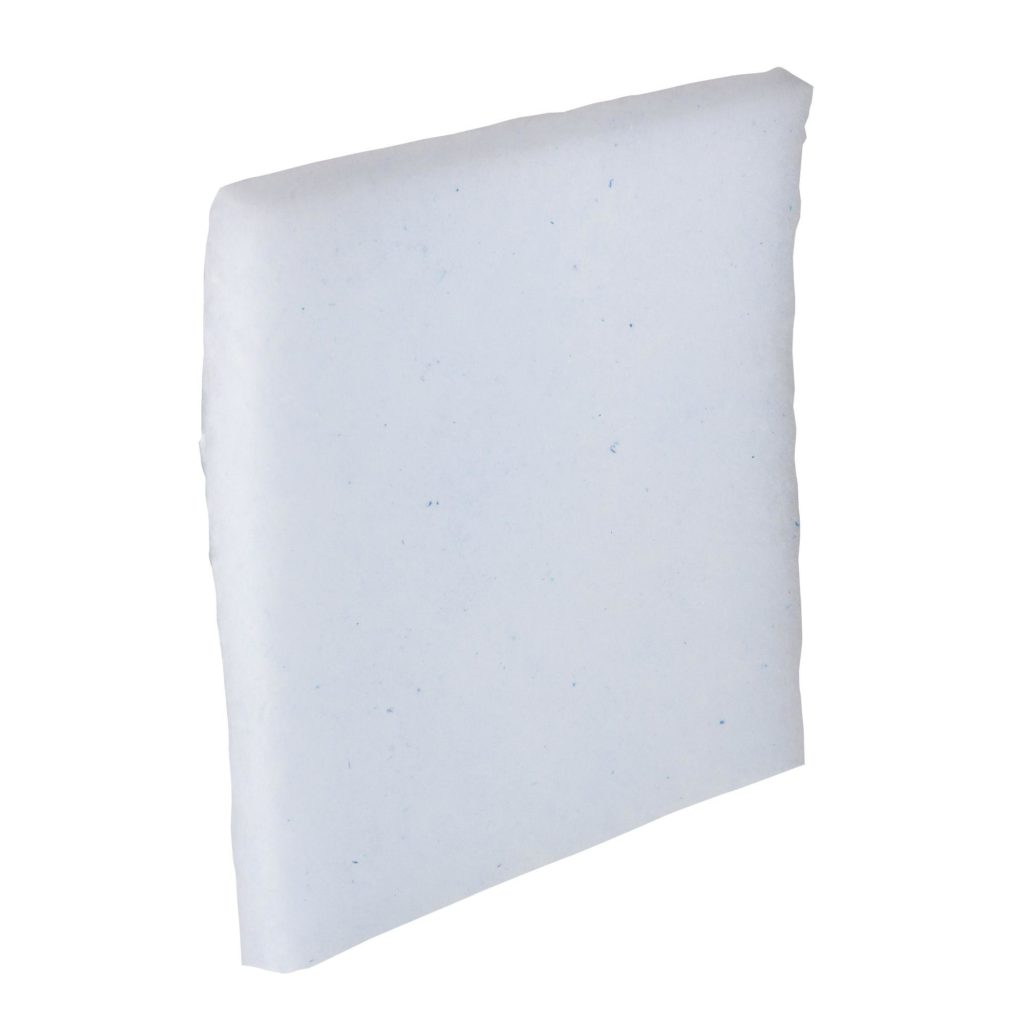

Series E12H

The Series E12H is one of the highest efficiency single-stage overspray collectors available. Featuring 2″ of high-lofted recycled polyester fibers bonded to a polypropylene “spider” skin backing, the E12H provides maximum efficiency for applications that require the highest in removal efficiency (99%+). Excellent holding capacity and longevity.



Series 99

The Series 99 is a red/white medium-high efficiency dual-denier polyester overspray media. Widely used in industrial finishing applications, the Series 99 is easy to handle and effective at trapping large ranges of particle sizes. The Series 99 is the economical option for operations requiring dual-denier overspray media. High holding capacity and removal efficiency.

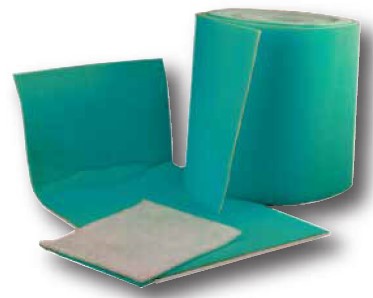

Series 55 Anti-microbial

Multi-Layer Design – Series 55 AM rolls consist of 2 distinct layers of media combined with a non-migrating tackifier resulting in more than 75% filtration efficiency on particles 10 microns and greater. The depth loading characteristics of the Series 55 AM media provide quality performance.

Series 65

Multi-Layer Design – Series 65 panels and links consist of 3 distinct layers of media combined with a non-migrating tackifier resulting in more than 80% filtration efficiency on particles 10 microns and greater. The depth loading characteristics of the Series 65 media provide excellent performance.

Supraloft® Polyester Group

The FG-Finishing’s Supraloft® Polyester Group consists of non-woven high loft polyester manufactured by Columbus Industries for paint overspray applications. The collection of both rolls and cut pads is available in a wide variety of performance levels and thicknesses – dry or tackified and with or without an anti-microbial additive. Each filter has high holding capacities due to depth-loading characteristics and graduated fiber density. Filter change out is clean, quick and efficient, and a long service life means the filters need to be changed less often. In addition to the polyester overspray media, FG-F also offers other even denser media to capture very fine particles for secondary operations.

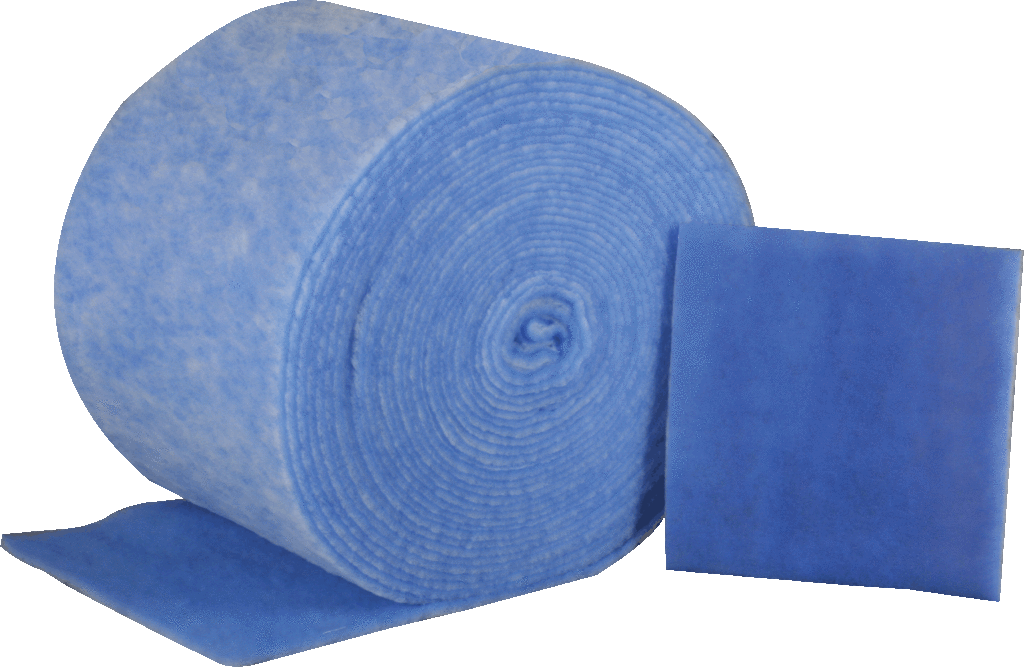

SL-50WBT – MERV 6


5/8″ thick, blue and white tackified polyester air filter media. Made for light-duty commercial HVAC filtration applications where low cost and low pressure drop are most important. Two zones of filtration. Includes antimicrobial fibers.

SL-100WBT – MERV 7


1″ thick, blue and white, tackified polyester air filter media. Ideal for medium to heavy-duty commercial/industrial HVAC filtration applications where performance, low pressure drop and low cost are equally important. Two zones of filtration and MERV 7 rated. Includes antimicrobial fibers.

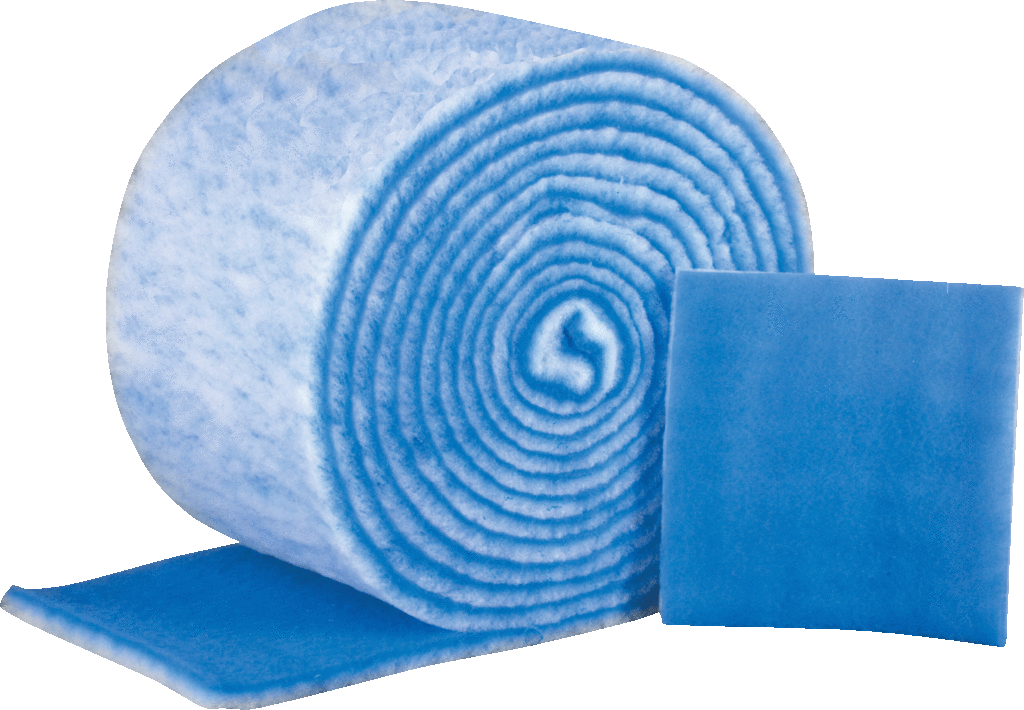

SL-150WBT – MERV 7


1-3/4″ thick, blue and white, tackified polyester air filter media. Made for medium to heavy-duty commercial HVAC filtration applications where performance and the removal of a wide range of particles is the priority. Two zones of filtration and MERV 8 rated. Includes antimicrobial fibers.

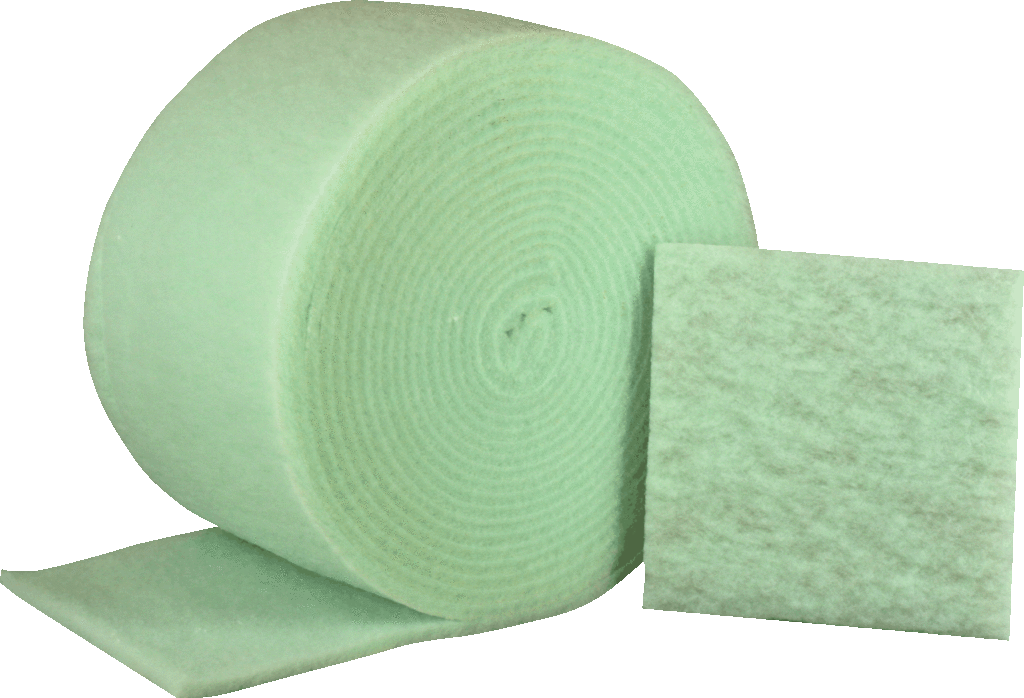

SL-100GTN – MERV 7


1″ thick, green and heavily tackified air filter media. Used primarily in heavy duty commercial/industrial HVAC air filtration applications where performance is the key factor in media application. Made using all prime fibers with a portion being recycled plastic bottles. Has two zones of filtration with a MERV 7 rating. Includes antimicrobial fibers.

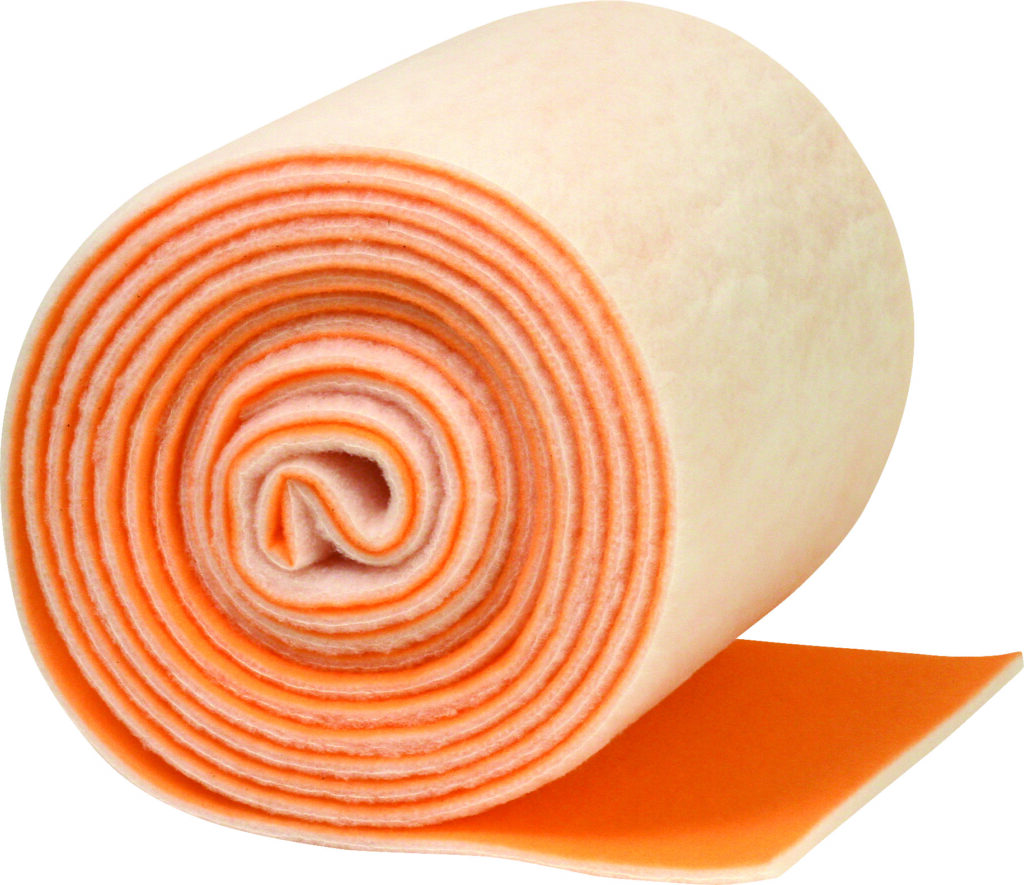

SL-100ONT SURE-STOP AM™ – MERV 10


1″ thick, orange/white, needled and heavily tackified air filter media. Used primarily in commercial/industrial HVAC air filtration applications for heavy-duty applications where performance is very important. Has two zones of filtration with a MERV 10 rating. Includes antimicrobial fibers.

VL-05PST

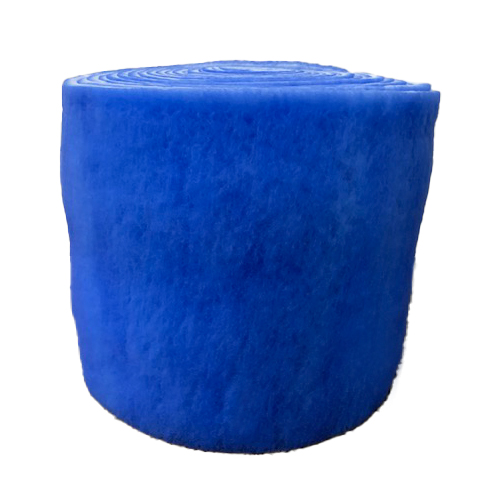

  • 1/2″ thick, blue/white
  • Non-Migrating light dry tackifier applied during
    manufacturing process to increase dust holding for
    applicable grades.
  • High particle removal efficiency MERV 7
  • Excellent holding capacity and longevity
  • Low initial static pressure (0.187″ w.c.)
  • Low unit cost

VL-19PST


  • 2″ thick, blue/white
  • Non-Migrating light dry tackifier applied during
    manufacturing process to increase dust holding for
    applicable grades.
  • High particle removal efficiency MERV 8
  • Excellent holding capacity and longevity
  • Low initial static pressure (0.403″ w.c.)
  • Low unit cost

VL-OR2

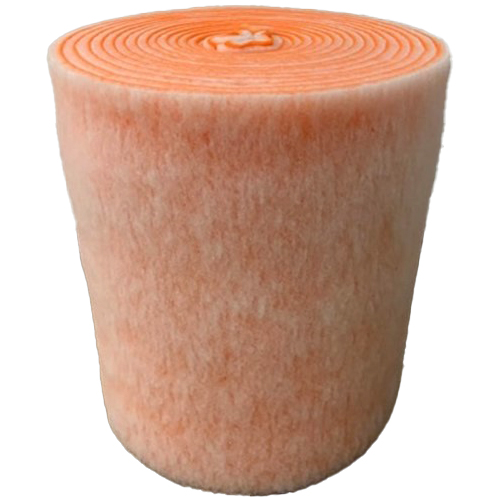

  • 1.5″ thick, orange/white
  • Non-Migrating heavy dry tackifier applied during
    manufacturing process to increase dust holding for
    applicable grades.
  • High particle removal efficiency MERV 10
  • Excellent holding capacity and longevity
  • Low initial static pressure (0.31″ w.c.)
  • Low unit cost

SL-125ONT SURE-STOP AM™ – MERV 8


1-1/2″ thick, orange/white, needled and heavily tackified air filter media. Used primarily for commercial/industrial HVAC air filtration for heavy-duty applications where performance is most important. Has two zones of filtration with a MERV 8 rating. Includes antimicrobial fibers

VL-09PST

  • 1″ thick, blue/white
  • Non-Migrating light dry tackifier applied during
    manufacturing process to increase dust holding for
    applicable grades.
  • High particle removal efficiency MERV 7
  • Excellent holding capacity and longevity
  • Low initial static pressure (0.278″ w.c.)
  • Low unit cost

VL-OR1


  • 1″ thick, orange/white
  • Non-Migrating heavy dry tackifier applied during
    manufacturing process to increase dust holding for
    applicable grades.
  • High particle removal efficiency MERV 9
  • Excellent holding capacity and longevity
  • Low initial static pressure (0.22″ w.c.)
  • Low unit cost

Diffusion and POLY-SORB® Activated Carbon Media also available
